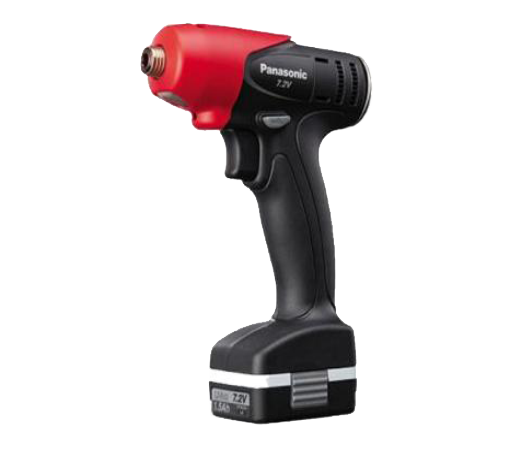

Cordless Precision Assembly Screwdrivers
Products Details
A compact, lightweight body makes our 7.2V auto shut-off clutch tools ideal for assembly applications where low-torque fastening, repeatable accuracy, and ergonomics are valued. Featuring a 1/4” hex quick change chuck, the two-speed reversible driver delivers torque range of 2.7-35.4 in-lbs. Cordless battery power offers freedom of movement and emissions-free operation for demanding lines and technicians.
Key Features
- Clutch torque range of 2.7-35.4 in-lbs with accuracy +/-5%
- 21-stage clutch with auto shut-off
- 2-speed variable/reversible with 1/4” hex quick change chuck
- Low battery disable & over current protection
- Compact and ultra lightweight for ultimate operator friendliness
Product Specifications
| Model Number | Max Torque | Min Torque | RPM | Dimensions | Weight |
| EYFEA1N | 53.1 in.lbs | 17.7 in.lbs | 300-900 | 5-3/4″ x 7-7/8″ x 1-5/8″ | 1.38 lbs |
| EYFEA1N2S | 53.1 in.lbs | 17.7 in.lbs | 300-900 | 5-3/4″ x 7-7/8″ x 1-5/8″ | 1.38 lbs |
Services
Panasonic Assembly & Professional Tool Repair
At Wesco Production Tools Ltd. when you send us your Panasonic tool, we have several professionally trained service technicians to repair your Panasonic tool with original Panasonic parts. We work directly with Panasonic Canada to return your tool to the original factory specifications.
Advanced Assembly Solutions Team
The Solutions Team works closely with our customers and their challenges in order to provide the most cost effective, efficient and innovative solutions.
Our “Advanced Assembly Solutions Team” offers:
Preventative Maintenance Programs
Quality Audits
Custom Application and Tooling Solutions
Joint Dynamics and Torque Analysis
Calibration/Validations
Tool Management Programs
Training
Plant Air and Electrical Studies
Pilot Project Consultation and Support
Ergonomic Consulting
Process Efficiency Studies
Torque Auditing Programs
