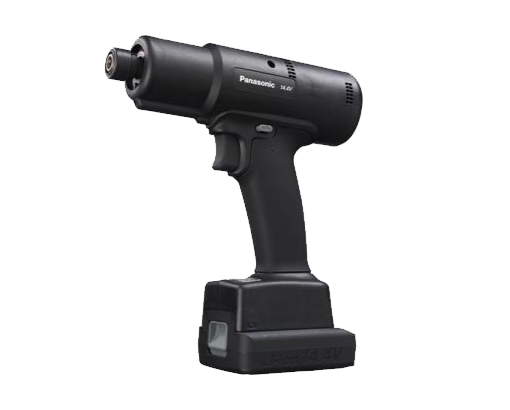

Cordless Programmable Clutch Tools
Products Details
Our programmable 14.4V clutch tools offer repeatable fastening accuracy for assembly lines where quality monitoring and error proofing are essential. Featuring 1/4” hex quick-change chucks and all-steel fast action clutches, these drivers deliver torque range of 2.5Nm-10Nm with high accuracy ±10% @ Cmk better than 1.67 ≥ 3Nm. Connect a Panasonic qualifier for wireless error proofing. Easily program cross thread/rehit detection, rundown speeds, and more.
Key Features
- 2.5-10Nm torque range
- Programmable quick-set features improve precision, quality control and efficiency
- Intelligent auto shut-off and photo interrupter sensor increases tool accuracy & clutch life
- Superior ergonomics for improved worker safety
- Brushless motor, all-steel clutch and hybrid switch nearly doubles tool life
Product Specifications
| Model Number | Max Torque | Min Torque | RPM | Dimensions | Weight |
| EYFGA1N | 5.5 Nm | 2 Nm | 0-800 | 7-13/16″ x 9-1/8″ x 2-15/16″ | 2.76 lbs |
| EYFGA1NR | 5.5 Nm | 2 Nm | 0-800 | 7-13/16″ x 9-1/8″ x 2-15/16″ | 2.76 lbs |
| EYFGA2N | 8 Nm | 5 Nm | 0-750 | 7-13/16″ x 9-1/8″ x 2-15/16″ | 2.76 lbs |
| EYFGA2NR | 8 Nm | 5 Nm | 0-750 | 7-13/16″ x 9-1/8″ x 2-15/16″ | 2.76 lbs |
| EYFGA3N | 10 Nm | 5 Nm | 7-13/16″ x 9-1/8″ x 2-15/16″ | 2.86 lbs | |
| EYFGA3NR | 10 Nm | 5 Nm | 0-450 | 7-13/16″ x 9-1/8″ x 2-15/16″ | 2.86 lbs |
Services
Panasonic Assembly & Professional Tool Repair
At Wesco Production Tools Ltd. when you send us your Panasonic tool, we have several professionally trained service technicians to repair your Panasonic tool with original Panasonic parts. We work directly with Panasonic Canada to return your tool to the original factory specifications.
Advanced Assembly Solutions Team
The Solutions Team works closely with our customers and their challenges in order to provide the most cost effective, efficient and innovative solutions.
Our “Advanced Assembly Solutions Team” offers:
Preventative Maintenance Programs
Quality Audits
Custom Application and Tooling Solutions
Joint Dynamics and Torque Analysis
Calibration/Validations
Tool Management Programs
Training
Plant Air and Electrical Studies
Pilot Project Consultation and Support
Ergonomic Consulting
Process Efficiency Studies
Torque Auditing Programs
