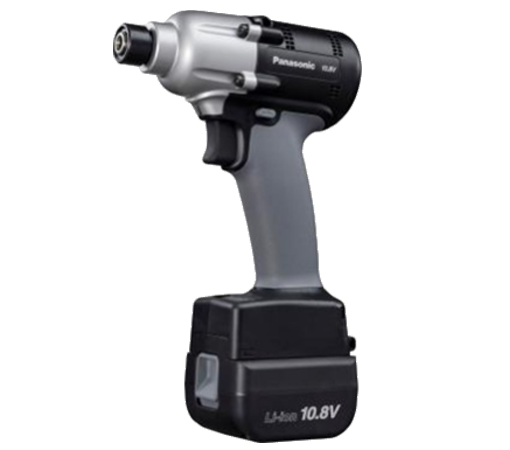

AccuPulse-HR Series, 10.8V Mechanical Pulse Tool, 6-30Nm
EYFLA8A
Products Details
AccuPulse® HR Series equips quality-conscious plants with the most advanced cordless mechanical pulse tools ever made. AccuPulse tools are ergonomically designed with worker safety top of mind. Compact and balanced with virtually no torque reaction to create a healthier, more productive work environment. A modern cordless design allows total freedom of movement for greater production efficiency.
Key Features
- Virtually no torque reaction
- Provides 6-30Nm torque range from a 1/4” hex quick change drive
- High resolution encoder ensures precise fastening of the highest accuracy
- Innovative flush point detection mode for increased accuracy for varying joint types
- Advanced programmable features for higher worker productivity and plant automation
Product Specifications
| Voltage | 10.8V |
| Series | AccuPulse – HR Series |
| Drive | 1/4″ Hex Quick Change |
| Torque Range Nm | 6-30 Nm |
| Torque Range ft.lbs | 4.4-22 ft.lbs |
| Torque Range in.lbs | 53.1-265.52 in.lbs |
| Max Torque* (F mode, Tightening 3 sec.) | 80Nm M14 Bolt |
| Flush Detection Modes | L1 – L7 |
| No Load Speed (Torque Setting: Rpm) | 1: 0 – 1300 2: 0 – 1450 3: 0 – 1550 4 – 40 & F: 0 – 2300 |
| PPM (Pulses Per Min) | 1: 0 ~ 2400 2: 0 ~ 2500 3: 0 ~ 2800 4 ~ 40 & F: 0 ~ 3300 |
| Weight | 2.53 lbs. (incl. 2.0Ah (EYFB32B)) 2.86 lbs. (incl. 3.0Ah (EYFB30B)) |
| Size (L x H x W) | 6-1/32” x 9-51/64” x 2-61/64” |
| Wireless Communication with Assembly Qualifier | N/A |
| LED Work Light: (ON/OFF Switch) | Yes |
| OK/NOK Light: (Green: OK/Red: NOK) | Yes |
| Rehit Prevention: (Possible to set per 0.1 sec. between 0-3 sec.) | Yes |
| Battery Indication Lamp: (3 Stage) | Yes |
| Low Power Disable | Yes |
| Prevent/Detect Cross Threads & Rehits | Yes |
| Maintenance Interval Alarm | Yes |
| Variable Speed On/Off Switch | Yes |
| LED Light Setting: ON/OFF | Yes |
| Buzzer: ON/OFF | Yes |
| Flush Point Detection Delay (Possible to set between 0-3 sec.. 0.1 sec. per stage | Yes |
| Socket Extension Mode (h1:150mm socket, h2: for 250mm socket) | Yes |
| Work Capacity/Fastening Speed* | <M8: 23 N·m, Stage: 22> (EYFB30B) 800pcs/pack 0.7sec/1pcs (EYFB32B) 540 pcs/pack 0.7 sec/1pcs |
