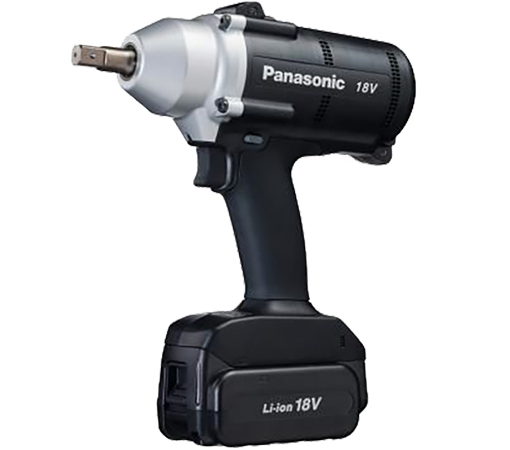

18V HR 2-Way Series Mechanical Pulse Tools
EYFNA1CRT
Products Details
Panasonic’s new High Torque 2-Way Series tools share real-time fastening data to the qualifier with modifiable settings in torque stage, flush detection point, and cross-thread/rehit detection. The EYFNA1JRT, EYFNA1CRT, EYFNA1PRT, and EYFPA1JRT are compatible with EYFR03 and EYFR04 qualifiers that have parameter, group and job modes to better streamline manufacturing processes. For ease of use, 2-Way Tools OK/NOK light blinks to notify operator of the next active tool in the sequence.
Key Features
- Provides 70-200Nm torque range from a 1/2” Square Drive with Ring Retainer and Through Hole
- High resolution encoder ensures precise fastening of the highest accuracy
- Innovative flush point detection mode for increased accuracy for varying joint types
- Advanced programmable features for higher worker productivity and plant automation
Product Specifications
| Voltage | 18V |
| Shut-off Method | Mechanical Pulse HR Series |
| Drive | 1/2″ Square Drive Pin Detent |
| Torque Range Nm | 70-200Nm |
| Torque Range ft.lbs | 51.6-147.5ft.lbs |
| Torque Range in.lbs | 619.55-1770.15in.lbs |
| Max Torque* (F mode, Tightening 3 sec.) | Approx. 470Nm M24 Bolt |
| Flush Detection Modes | L1-L2 |
| No Load Speed (Torque Setting: Rpm) | 1-30 & F:0-2300 |
| PPM (Pulses Per Min) | 1-30 & F:0-2200 |
| Weight | 6.6lbs. (incl.5.0Ah (EYFB50B)) |
| Size (L x H x W) | 9-11/64″ x 11-1/4″ x 3-1/32″ |
| Wireless Communication with Assembly Qualifier | Yes |
| 2-Way Communication | Yes(EYFR03/EYFR04 only) |
| LED Work Light: (ON/OFF Switch) | Yes |
| OK/NOK Light: (Green: OK/Red: NOK) | Yes |
| Rehit Prevention: (Possible to set per 0.1 sec. between 0-3 sec.) | Yes |
| Battery Indication Lamp: (3 Stage) | Yes |
| Low Power Disable | Yes |
| Prevent/Detect Cross Threads & Rehits | Yes |
| Maintenance Interval Alarm | Yes |
| Variable Speed On/Off Switch | Yes |
| LED Light Setting: ON/OFF | Yes |
| Buzzer: ON/OFF | Yes |
| Snug torque detection delay (Possible to set between 0-3 sec. 0.1 sec. per stage) | N/A |
| Socket Extension Mode (h1:150mm socket, h2: for 250mm socket) | N/A |
| Work Capacity/Fastening Speed* | <M12: 100 N·m, Stage: 13> approx.500pcs/pack |
| Charging time | (Battery pack EYFB50B, Charger EY0L82B) Usable Charge: approx. 65 min. Full Charge: approx. 80 min (Battery pack EYFB51B, Charger EY0L82B) Usable Charge: approx. 45 min. Full Charge: approx. 60 min |
